Reference Studio 4K PureBright

High Gain, high definition and perfect pixel reproduction.

The EluneVision PureBright 4K 300 material provides the high reflectivity, gain, and all of the advantages of a traditional glass beaded surface, without any of the drawbacks – the screen has virtually no texturing, allowing the highest gain of all screen surfaces with no the loss of resolution for both 1080p and future 4K resolutions. Additionally, the fact that it is not glass-beaded means that the surface can be cleaned when necessary.

Revel in the sharpest video experience available in the market by projecting your content onto a screen that remains the measuring bar all others compete against.

The EluneVision PureBright 4K 300 material provides the high reflectivity, gain, and all of the advantages of a traditional glass beaded surface, without any of the drawbacks – the screen has virtually no texturing, allowing the highest gain of all screen surfaces with no the loss of resolution for both 1080p and future 4K resolutions. Additionally, the fact that it is not glass-beaded means that the surface can be cleaned when necessary.

Revel in the sharpest video experience available in the market by projecting your content onto a screen that remains the measuring bar all others compete against.

Reference Studio 4K PureBright

High Gain, high definition and perfect pixel reproduction.

Micro-texture Screen Surface.  Engineered to be Invisible

When projecting image and video, every little bump and detail of the screen will show, effectively decreasing image resolution and sharpness. We’ve dedicated years of research to develop a screen material that boasts a super-smooth micro texture that’s virtually invisible. The texture of the Reference Studio material is so fine that the image remains sharp with near perfect pixel accuracy with the latest 4K projectors.

Micro-texture Screen Surface.  Engineered to be Invisible

When projecting image and video, every little bump and detail of the screen will show, effectively decreasing image resolution and sharpness. We’ve dedicated years of research to develop a screen material that boasts a super-smooth micro texture that’s virtually invisible. The texture of the Reference Studio material is so fine that the image remains sharp with near perfect pixel accuracy with the latest 4K projectors.

Reference Studio 4K

Most Expensive Competitor

More Expensive Competitor

Similar Price Competitor

We believe everyone deserves to enjoy an amazing screen. The Reference 4K was designed with that in mind: unparalleled performance at an affordable price.  Its smooth surface texture is only equivalent to other products significantly higher in price. With a zero-texture surface that good, it’s no wonder your content streams in bright colors with heightened contrast levels. Enjoy your movies as they were meant to be seen!

We believe everyone deserves to enjoy an amazing screen. The Reference 4K was designed with that in mind: unparalleled performance at an affordable price.  Its smooth surface texture is only equivalent to other products significantly higher in price. With a zero-texture surface that good, it’s no wonder your content streams in bright colors with heightened contrast levels. Enjoy your movies as they were meant to be seen!

Neutral White Balance. Perfect Color Every Time

Imagine a perfect canvas in where you can paint your every dream. That’s what our Reference Studio PureBright 4K  3.0 white gain material is like. With this perfect base, your colors appear brighter and more vivid than with regular screens. The neutral color balance means no color shifting, that is, the color you see on the screen will be identical to the source.

Life Has Never Looked So Bright

In the past, even the smallest light used to mean a washed out display. Not anymore. Our signature Ambient Light Rejection screen guarantees enhanced color saturation even in brightly lit rooms. After years of research, we’ve developed a screen that rejects off axis sources of light and amps up color contrast and intensity. That means you’ll enjoy more vivid images in brilliant colors.

NanoALR

Micro-texture Screen Surface.  Engineered to be Invisible

When projecting image and video, every little bump and detail of the screen will show, effectively decreasing image resolution and sharpness. We’ve dedicated years of research to develop a screen material that boasts a super-smooth micro texture that’s virtually invisible. The texture of the Reference Studio material is so fine that the image remains sharp with near perfect pixel accuracy, even with the latest 4K projectors.

Reference Studio 4K Brings Your Movies to Life

The brightest colors you’ve ever seen on a screen. That’s what you get when you include Reference Studio 4K in your theater.  Boasting excellent performance in every aspect, the Reference aims to be the measuring bar to all screen materials for years to come. With an invisible micro-texture and a wide viewing angle, Reference Studio 4K is a screen that puts all contenders to shame.

Reference Studio 4K Brings Your Movies to Life

The brightest colors you’ve ever seen on a screen. That’s what you get when you include Reference Studio 4K in your theater.  Boasting excellent performance in every aspect, the Reference aims to be the measuring bar to all screen materials for years to come. With an invisible micro-texture and a wide viewing angle, Reference Studio 4K is a screen that puts all contenders to shame.

Reference 2D and 3D Performance

The Reference Studio 4K series of screens is designed to maximize detail, resolution and uniformity for both 2D and 3D projection. To get the best 3D immersive experience, the screen must be free from artifacts, hot spots and textures. Any flaw in the material and in the reproduction will contribute to a loss of immersion and viewer fatigue due to increased cross talk.

Technical Specifications

Material Type Fully Opaque Flexible Front Projection - 4K Resolution Ready
Gain 3.0

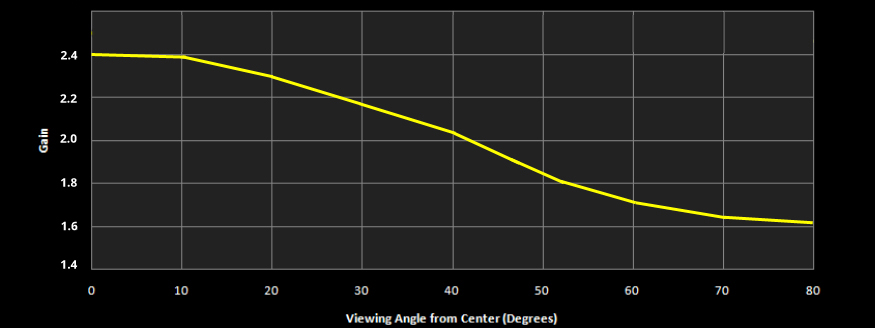

Half Gain 40 Degrees
Screen Types Fixed
Minimum Throw Distance 0.6 x Image Width
Ambient Light Resistance High resistance to ambient light
Ambient Light Reflectance Value 86%/foot candle
Lay Flat Quality Excellent
Active 3D Yes
Passive 3D No
Flame Resistance Yes
Mildew Treatment Yes
Optional Sound Perforations Not Available
Size Limitations See Size Charts

Reference Studio 4K Screen Material Features

Perfect Pixel Geometry

The lack of texture leaves pixel geometry perfectly intact with our material. Why is this important? With 1080p projectors now standard, EluneVision’s Reference Studio 4K material ensures that the effective resolution remains at 1080p, while other (more expensive) competitors degrade the pixel geometry to the point that the effective resolution is no longer even close to 1080p. Also due to the fact that there is zero texturing and perfect preservation of detail clarity, the Reference Studio 4K material will perfectly resolve 4K resolution in both today’s high end and future 4K projectors, saving you a screen upgrade.


To illustrate this point, see the images below, showing our Reference Studio 4K 100 material beside Stewart’s (widely considered the gold standard, but a much higher cost), as well as two other more expensive competitors.

The test above clearly shows that our material, as well as the much higher priced Stewart Studiotek 100, keeps the pixels in tact, while the other competitors severely degrade the pixel geometry despite being much more expensive than the EluneVision Reference Studio 4K Fixed-Frame screen.


No Sparkles or Graininess – Complete Invisibility of Screen Material

Due to the use of a smooth and near perfect Lambertian diffuser material, our screen has absolutely no sparkles. The material was purposely engineered to disperse the light evenly in a hemispherical distribution, creating a perfect reproduction, as the director intended. The Reference Studio 4K 100 material will easily pass any of the common sparkle tests, which include fast action bright scenes in movies as well as hockey, football, and other sports. This means that viewer will always see the image displayed on the screen as the projector manufacturer intended, and will never see the annoying imperfections present on competitors’ screen materials.


Moire Free With All Projection Technologies

When an image’s pixel pattern does not match that of the textured surface it is displayed on, moire is created. The mismatch causes a wavy, non-uniform, interference pattern which degrades projected image quality and uniformity.

The Reference Studio 4K 100 material completely eliminates this problem because the screen material is 100% texture free, which means that there is no textured surface pattern that could cause the creation of the interference patterns. Furthermore, the Reference Studio 4K 100 material has been tested with LCD, DLP, D-ILA and SXRD projectors to ensure a moire-free picture at various throw distances and viewing angles.

To the left is an example of how moire can impact picture quality.  When you zoom in, you see that the competitor’s screen creates moire on the woman’s dress, causing artifacts patterns that are not supposed to be on the image.  Furthermore, the moire pattern also causes discoloration, as green hues are introduced on what is supposed to be a completely blue dress in the competitor’s image.

Perfect White Field Uniformity



Reference Studio 4K 100 material provides perfect white field uniformity due to the material’s Lambertian diffuser nature. The brightness will be even across the entire screen and there will not be areas of the screen which are brighter or dark to the viewer at any viewing angle. When projecting a pure white scene, the white level will be even from edge to edge, with absolutely no hot-spotting or texturing , demonstrating a reference level of performance and image quality.

Colour Neutrality and Accuracy

EluneVision’s new Reference Studio 4K 100 material is designed specifically to achieve the highest level of color reproduction. To achieve this, the material is designed for a completely neutral color reproduction. The Lambertian diffuser property, in addition to a specially designed white base color, maintains color accuracy across the entire color gamut. Many other projection materials in the market today will exhibit a shift in hue, either to the blue, green or red. This creates an unnatural balance to the colors and will decrease the color uniformity and vibrancy.

Above, we see a demonstration of this phenomenon.  The top zoom-in shows the competitor’s screen versus our EluneVision Reference Studio 4K 100 screen material. Note the color shifts that the competitor exhibits, as well as the minimization color shifts of the EluneVision Reference Studio 4K 100 material.  This results in the color accuracy of the whites and the reds you see in the EluneVision Reference Studio 4K 100 screen material image.
